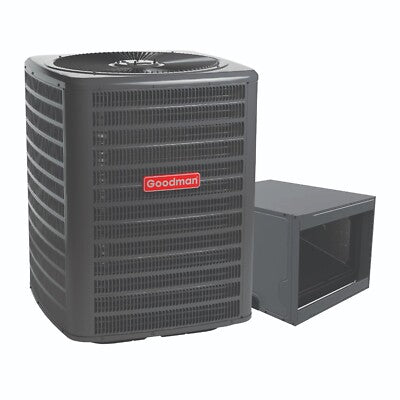

Goodman 2 Ton 14.3 SEER2 R32 Air Conditioner & 17.5 Horizontal Cased Coil
The 2 Ton AC Goodman 14.3 SEER2 & 17.5 Horizontal Cased Coil is a reliable and energy-efficient cooling solution, designed for optimal performance and durability in residential settings.
2 Ton AC Goodman - GLXS5BA2410 Features:
- Energy-Efficient Compressor: Ensures superior cooling with minimal energy consumption.
- Pre-Charged: Fully charged for up to 15\' of tubing length, simplifying installation.
- Durable Coils: Copper tube with 5mm enhanced aluminum fins promotes efficient heat transfer.
- Factory-Installed Filter Drier: Enhances system performance and lifespan.
- Easy Access: Sweat connection service valves with easy-to-reach gauge ports.
- Safety Features: High-pressure switch and long-life capacitors for reliable operation.
- Certified Performance: AHRI Certified and ETL Listed for quality assurance.
Cabinet Features:
- Corrosion-Resistant: Architectural Gray powder-paint finish resists corrosion and meets 500-hour salt-spray standards.
- Improved Airflow: Venturi design boosts airflow velocity for more efficient cooling.
- Service-Friendly Design: Removable grille-style top and side access panels allow easy maintenance.
- Storm-Ready: Compliant with 2023 Florida Building Code when properly anchored (brackets sold separately).
2 Ton Coil - CHPTA2426B3 Features:
- Optimized for R-32 Refrigerant: All-aluminum coil and integrated R-32 sensor for enhanced durability.
- Factory-Installed Thermal Expansion Valves: Perfect for cooling and heat pump applications.
- Compact Design: 21 depth and horizontal application ideal for easier attic access.
- Durable Build: Galvanized, leather grain-embossed finish with rust-resistant thermoplastic drain pan.
- Condensation Control: Foil-faced insulation minimizes cabinet condensation.
- UV Protection: UV-resistant drain pan with low water-retention design for long-term reliability.
- Easy Maintenance: Single front access panel simplifies servicing.
In Summary, the Goodman 2 Ton 14.3 SEER2 R32 Air Conditioner & 17.5 Horizontal Cased Coil offers superior performance with advanced energy-efficient features, ensuring reliable and cost-effective cooling for your home. Its durable construction and user-friendly design make it an excellent choice for residential cooling needs.
AC Model Number
GLXS5BA2410
SEER: 15.2
Tons: 2
BTU: 24,000
Volts: 208/230
Phase: Single
Motor Type: PSC
Min. Circuit Amps: 13.8
Max Fuse Size: 20
Liquid Connection: 3/8
Suction Fitting: 3/4
Refrigerant: R-32
Width: 29
Height: 32
Depth: 29
Weight: 151 lbs
Evaporator Coil Model Number
CHPTA2426B3
Unit Depth: 21 in
Unit Height: 17.5 in
Unit Width: 26 in
Cased/Uncased: Cased
