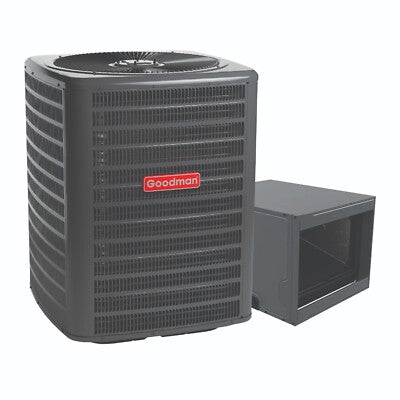

Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 24.5" Horizontal Cased Coil

Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 24.5" Horizontal Cased Coil

Model: SS-GLXS3BN6010 - CHPTA6030D3 - 25K-V01

$4,229.00
$4,229.00
Sale Sold out
Installation Kit
View full details

  • Goodman 5 Ton 13.4 SEER2 R32 Air Conditioner & 24.5 Horizontal Cased Coil

    The 5 Ton AC Goodman 13.4 SEER2 & 24.5 Horizontal Cased Coil is designed for exceptional cooling efficiency and long-term durability. Together, these components provide seamless operation while ensuring reduced energy consumption and easy maintenance.

    5 Ton AC Goodman - GLXS3BN6010 Features:

    • Efficient Compressor: Ensures reliable performance with lower energy costs.
    • Pre-Charged System: Simplifies installation with a 15-foot tubing charge.
    • Enhanced Coil Design: Copper tube with 5mm aluminum fins for superior heat transfer.
    • Durable & Certified: Factory-installed filter drier, extended-life capacitors, AHRI Certified, and ETL Listed.

    Cabinet Features of the 5 Ton Coil:

    • Grille-Style Design: UL-compliant, removable top for easy maintenance.
    • Improved Airflow: Venturi design enhances cooling performance.
    • Corrosion-Resistant Finish: Architectural Gray powder paint with 500-hour salt-spray approval.
    • Accessible Maintenance: Single-panel access for controls and accessories.

    5 Ton Coil - CHPTA6030D3 Features:

    • All-Aluminum Build: Optimized for R-32 refrigerant with factory-installed thermal expansion valves.
    • Compact Design: 21 depth for tight spaces and attic installations.
    • Durable Drain Pan: UV-resistant with low water retention and easy coil repositioning.
    • Certified Quality: AHRI Certified and ETL Listed.

    The 5 Ton AC Goodman 13.4 SEER2 & 24.5 Horizontal Cased Coil combines energy efficiency, long-lasting materials, and user-friendly design, ensuring reliable and cost-effective cooling performance.

    AC Model Details:

    • Model Number: GLXS3BN6010
    • SEER: 13.4
    • Tons: 5
    • BTU: 60,000
    • Volts: 208/230
    • Phase: Single
    • Motor Type: PSC
    • Min. Circuit Amps: 31.1
    • Max Fuse Size: 50
    • Liquid Connection: 3/8
    • Suction Fitting: 1.125
    • Refrigerant: R-32
    • Dimensions: Width- 35.5, Height- 39.5, Depth- 35.5
    • Weight: 229 lbs

    Evaporator Coil Model Details:

    • Model Number: CHPTA6030D3
    • Unit Depth: 21 in
    • Unit Height: 24.5 in
    • Unit Width: 30 in
    • Cased/Uncased: Cased
