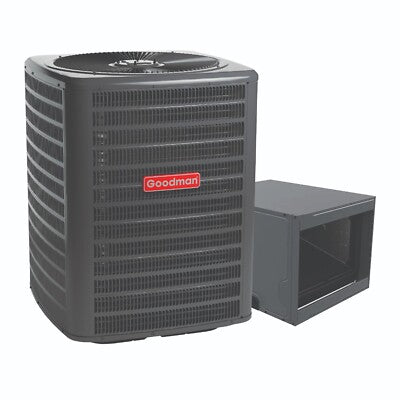

Goodman 3 Ton 14.3 SEER2 R32 Air Conditioner & 21 Horizontal Cased Coil

The Goodman 3 Ton 14.3 SEER2 R32 Air Conditioner & 21 Horizontal Cased Coil is a highly efficient cooling system designed for durability and eco-friendly operation using R-32 refrigerant.

3 Ton AC Goodman - GLXS5BA3610 Features:

• Energy-Efficient Compressor for cost-effective performance.
• Pre-Charged for 15\' Tubing, streamlining installation.
• Copper/Aluminum Coil with enhanced heat transfer efficiency.
• Factory-Installed Filter Drier for superior protection against moisture and contaminants.
• Accessible Service Valves for easy maintenance and diagnostics.
• Certified for Quality and Safety (AHRI & ETL Listed).

Cabinet Design Highlights of the 3 Ton Coil:

• Grille-Style Removable Top for better airflow and compliance with UL standards.
• Durable Powder-Coated Finish with salt-spray resistance for long-lasting durability.
• Easy Maintenance Panels for straightforward access during servicing.

3 Ton Coil Goodman - CHPTA4230C3 Features:

• All-Aluminum Coil optimized for R-32 refrigerant to ensure corrosion resistance and high efficiency.
• Thermal Expansion Valves support both cooling and heat pump applications.
• Compact 21 Depth for tight-space or attic installations.
• UV-Resistant, Rust-Proof Drain Pan with efficient water drainage and DecaBDE-free materials.

The 3 Ton AC Goodman 14.3 SEER2 R32 Air Conditioner & 21 Horizontal Cased Coil combines advanced performance, environmental sustainability, and ease of maintenance, making it a trusted solution for residential or light commercial cooling needs.

AC Model Number

GLXS5BA3610

SEER

15.2

Tons

3

BTU

36,000

Volts

208/230

Phase

Single

Motor Type

PSC

Min. Circuit Amps

17.8

Max Fuse Size

30

Liquid Connection

3/8

Suction Fitting

7/8

Refrigerant

R-32

Width

35.5

Height

39.5

Depth

35.5

Weight

201 lbs

Evaporator Coil Model Number

CHPTA4230C3

Unit Depth

21 in

Unit Height

21 in

Unit Width

30 in

Tonnage

3.5

Cased/Uncased

Cased
