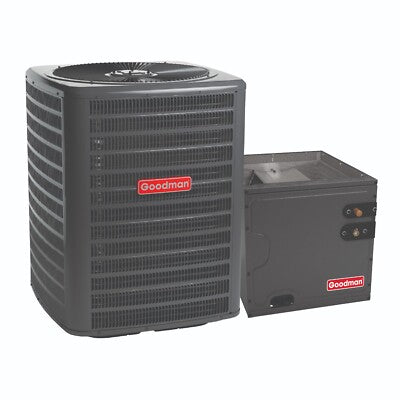

Goodman 4 Ton 13.4 SEER2 R32 Air Conditioner & 21 Vertical Cased Coil

The 4 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil is designed for high energy efficiency and reliability, featuring durable components for excellent cooling performance.

Goodman 4 Ton AC - GLXS3BN4810 Benefits:

• Energy-Efficient Compressor: Reduces energy consumption while ensuring reliable cooling.
• Fully Charged for 15\' of Tubing Length: Simplifies installation and reduces setup time.
• Copper Tube/Enhanced Aluminum Fin Coil (5mm diameter): Maximizes heat transfer efficiency for optimal cooling.
• Factory-Installed Filter Drier: Protects the system from contaminants and moisture.
• Sweat Connection Service Valves: Easy access to gauge ports for easy maintenance.
• Enclosed Contactor with Lug Connection & High-Pressure Switch: Provides secure and safe operation.
• Capacitors with Extended Life: Minimizes maintenance needs for long-term use.
• AHRI Certified & ETL Listed: Meets rigorous performance and safety standards.

Cabinet Features of the 4 Ton Coil:

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for added safety.
• Venturi for Increased Airflow Velocity: Enhances system efficiency and cooling performance.
• Attractive Architectural Gray Powder-Paint Finish: Salt-spray approved for resistance to corrosion.
• Steel Louver Coil Guard: Offers protection to the coil for longevity.
• Top and Side Maintenance Access: Allows for easy servicing and repairs.
• Single-Panel Access to Controls: Space for field-installed accessories for additional flexibility.

4 Ton Coil - CAPTA6030C3 Features:

• All-Aluminum Evaporator Coil: Corrosion-resistant and durable.
• Optimized for R-32 Refrigerant: Designed to work efficiently with environmentally-friendly refrigerant.
• R-32 Sensor for Extended Coil Lifespan: Monitors system performance for optimal efficiency.
• Factory-Installed Thermal Expansion Valves: Ideal for cooling and heat pump applications.
• Check Flowrator for Cooling and Heat Pump Applications: Ensures proper system function.
• Vertical Application: Designed for easier installation in compact spaces.
• 21 Depth for Easier Attic Access: Facilitates installation in hard-to-reach spaces.
• Foil-Faced Insulation: Helps reduce cabinet condensation for better energy efficiency.
• UV-Resistant Thermoplastic Drain Pan: Durable and designed to withstand UV degradation.

Overall, the 4 Ton AC Goodman 13.4 SEER2 & 21 Vertical Cased Coil provides exceptional performance and reliability, with advanced features to ensure longevity and ease of installation, making it an ideal choice for cooling applications.

AC Model Number: GLXS3BN4810

SEER: 13.4

Tons: 4

BTU: 48,000

Volts: 208/230

Phase: Single

Motor Type: PSC

Min. Circuit Amps: 25.6

Max Fuse Size: 40

Liquid Connection: 3/8

Suction Fitting: 1.125

Refrigerant: R-32

Width: 29

Height: 39.5

Depth: 29

Weight: 188

Evaporator Coil Model Number: CAPTA6030C3

Unit Depth: 21 in

Unit Height: 30 in

Unit Width: 21 in

Cased/Uncased: Cased
