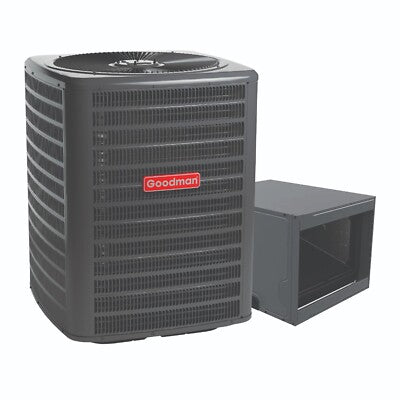

Goodman 4 Ton 13.8 SEER2 R32 Air Conditioner & 24.5" Vertical Cased Coil

Goodman 4 Ton 13.8 SEER2 R32 Air Conditioner & 24.5" Vertical Cased Coil

Model: SS-GLXS5BA4810 - CAPTA6030D3-25K-V01

$4,836.00
$4,836.00
Sale Sold out
Installation Kit
View full details

  • Goodman 4 Ton 13.8 SEER2 R32 Air Conditioner & 24.5 Vertical Cased Coil

    The 4 Ton AC Goodman 13.8 SEER2 & 24.5 Vertical Cased Coil combines energy-efficient cooling, robust construction, and streamlined maintenance for both residential and commercial applications.

    4 Ton AC Goodman - GLXS5BA4810 Features:

    • Energy-Efficient Compressor: Delivers reliable performance and reduced energy consumption.
    • Pre-Charged for Convenience: Fully charged for up to 15\' of tubing length for ease of installation.
    • Durable Coil Design: Copper tube with enhanced 5mm aluminum fins for efficient heat exchange.
    • Long-Lasting Components: Factory-installed filter drier and extended-life capacitors.
    • Certified Quality: AHRI Certified and ETL Listed for performance and safety.

    Cabinet Highlights of the 4 Ton Coil:

    • Streamlined Maintenance: Single-panel access to controls and side/top access panels.
    • Optimized Airflow: Venturi design and grille-style removable top.
    • Weather-Resistant Build: Architectural Gray powder coat finish withstands 500-hour salt-spray tests.

    4 Ton Coil - CAPTA6030D3 Features:

    • All-Aluminum Evaporator Coil: Designed for R-32 refrigerant and optimized for cooling and heat pumps.
    • Compact Depth: 21 design simplifies attic installations.
    • Rust-Resistant Drain Pan: Thermoplastic, UV-resistant pan with low water retention and secondary connections.
    • Effortless Maintenance: Additionally, Single front access panel and easily removable coil rails.
    • Certified Performance: Lastly, AHRI Certified and ETL Listed for reliability and safety.

    In conclusion, the 4 Ton AC Goodman 13.8 SEER2 & 24.5 Vertical Cased Coil is designed to provide efficient, quiet, and dependable cooling while offering straightforward installation and maintenance options.

    AC Model Information:

    Model Number: GLXS5BA4810
    SEER: 15.2
    Tons: 4
    BTU: 48,000
    Volts: 208/230
    Phase: Single
    Motor Type: PSC
    Min. Circuit Amps: 25.5
    Max Fuse Size: 40
    Liquid Connection: 3/8
    Suction Fitting: 1.125
    Refrigerant: R-32
    Width: 35.5
    Height: 36.5
    Depth: 35.5
    Weight: 257 lbs.

    Evaporator Coil Model Information:

    Model Number: CAPTA6030D3
    Depth: 21 in
    Height: 30 in
    Width: 24.5 in
    Tonnage: 5 in
    Cased/Uncased: Cased
